Brand: Advanced Clutch Technology
Manufacturer's Part Number: T1S-F01
Part Type: Clutch Kits
Product Line: ACT Heavy-Duty Twin Disc Street Clutch Kits
Automotive Fittings Part Number: ACL-T1S-F01
UPC: 00842385013745
Clutch Usage: Performance
Clutch Disc Quantity: 2
Flywheel Included: Yes
Input Spline Quantity: 10
Input Shaft Diameter: 1.063 in.
Disc Diameter (in.): 10.500 in.
Disc Diameter (mm): 267mm
Disc Material: Organic
Disc Style: Full face
Hub Style: Solid

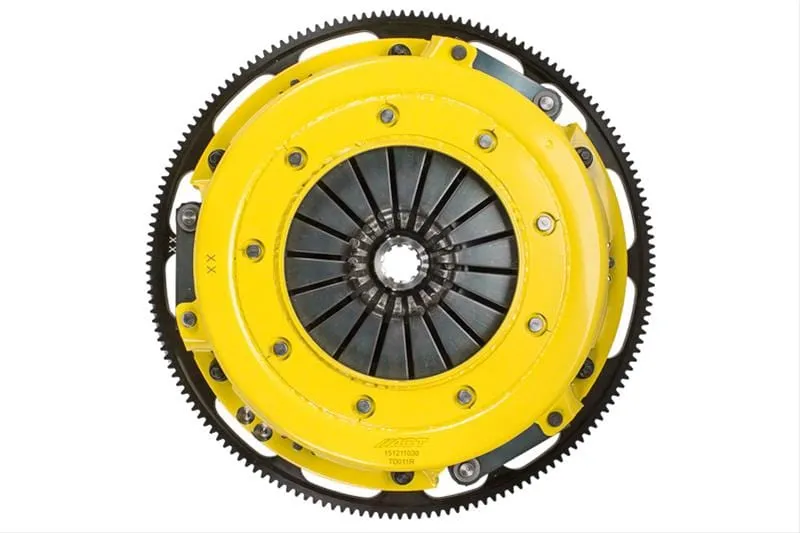

Pressure Plate Style: Diaphragm
Throwout Bearing Included: No
Alignment Tool Included: Yes
Pilot Bushing Included: Yes
Pilot Bushing Material: Steel

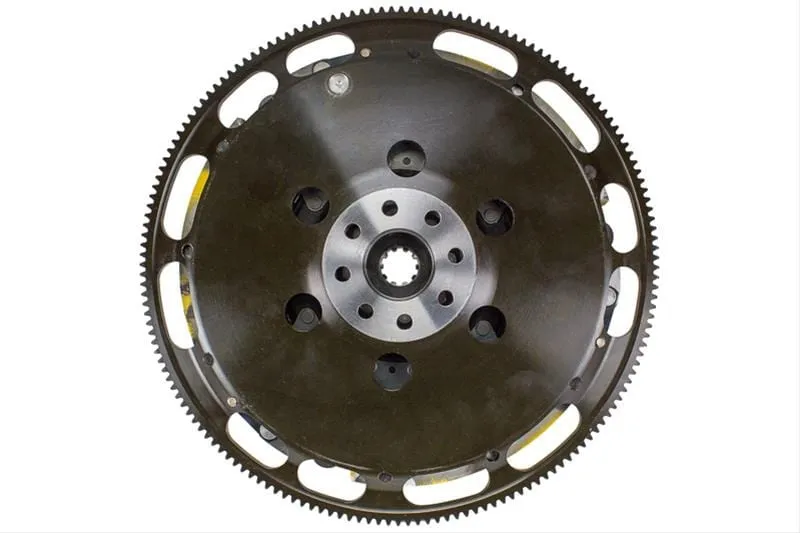

Flywheel Material: Chromoly
Ring Gear Tooth Quantity: 164-tooth
Flywheel Bolt Quantity: 8
Engine Balance: Internal
Counterweight Assist: No
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
Notes: Fits 8 bolt crankshaft. Torque capacity 891 ft. lbs.
Description:

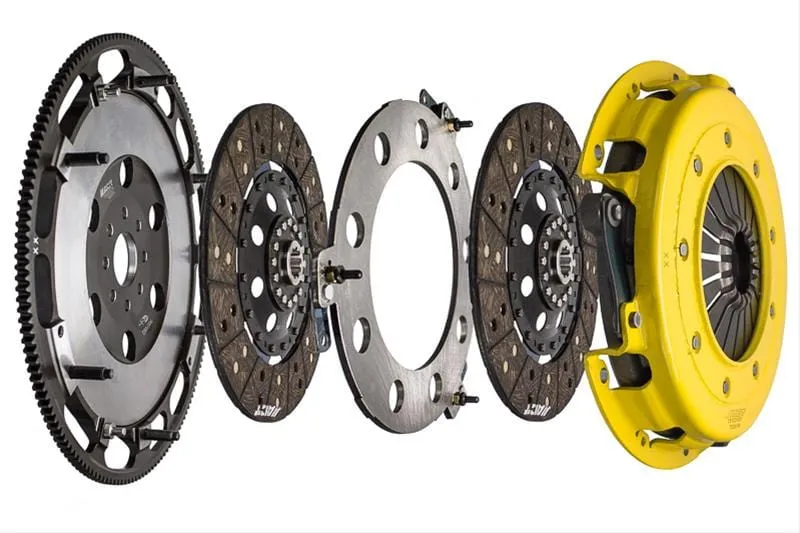

Transfer power into motion with ACT heavy-duty twin disc street clutch kits. Available for street and race use, these clutch kits feature twice the number of disc surfaces for better wear, heat capacity, and long life compared to single disc kits. They offer a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. Maximize your street and track performance with the solid quality and exceptional value of ACT heavy-duty twin disc street clutch kits.

More product features include:

* Exclusive 4-stage, heat-treating process performed on all diaphragms
* Ability to adjust for disc wear and provide equal disengagement
* 6-pad rigid race discs are made with high-quality, ceramic friction materials for quicker shifts and trouble-free service
* Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer, and steel-backed lining for greater burst strength plus durability
