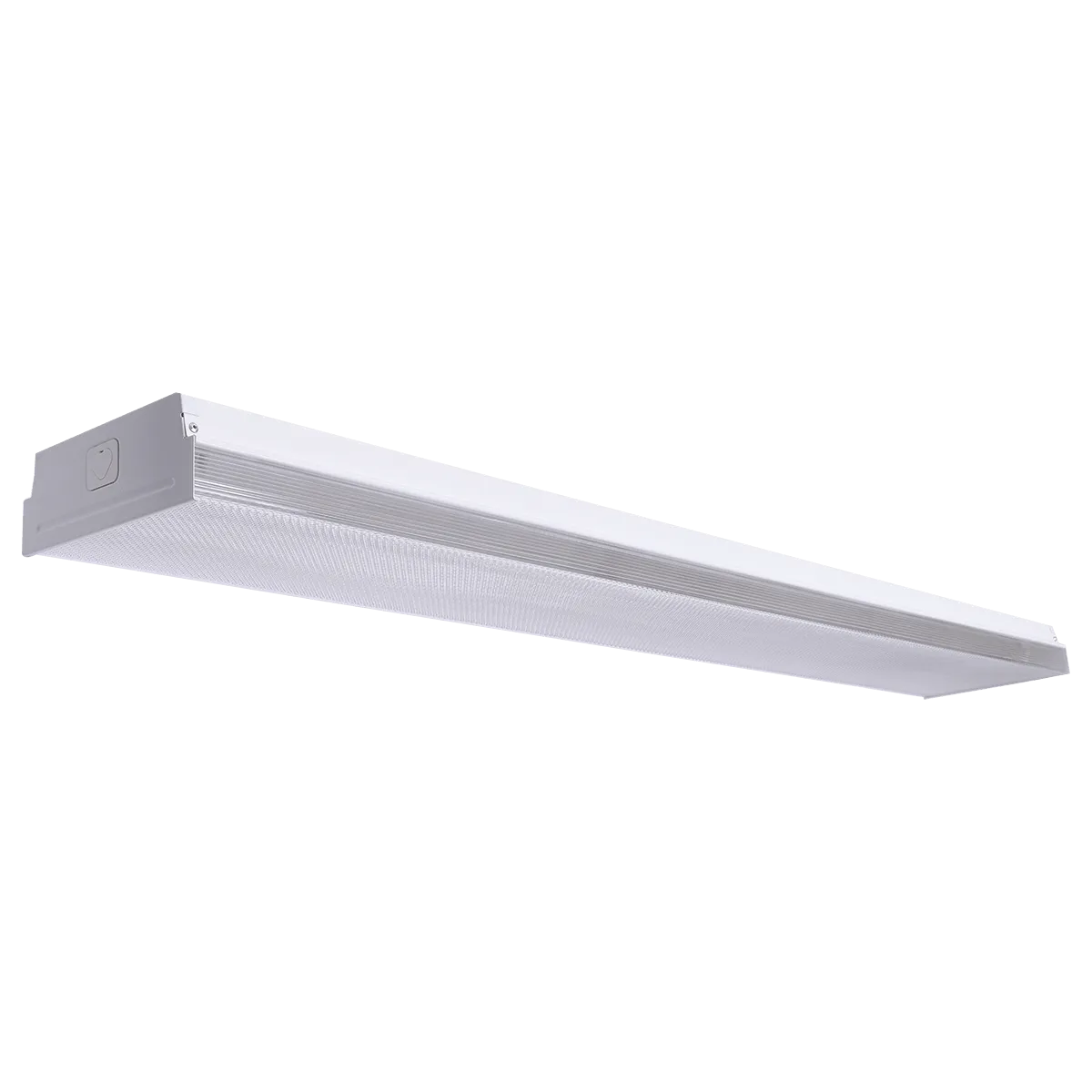

Linear Wrap 4FT 5000LM 45W 90CRI 3500/4000/5000K 120-277V DIM 0-10V

F E A T U R E S
• Ideal for storage areas, utility rooms, stairwells, corridors, and similar applications
• 2’ and 4’ versions
• Up to 111 lumens per watt
• High efficacy LED engine maximizes energy savings
• Full length wrap-around U-shaped prismatic acrylic lens
• FieldCCeT feature allows for multiple “set and forget” CCT options
• Internal back-up battery field install accessory available
C E R T I F I C A T I O N S
• UL Listed for dry/damp locations
• DesignLights Consortium® Qualified - meets DLC requirements for efficacy and lumen
maintenance
• ENERGY STAR® Approved for superior energy efficiency
P E R F O R M A N C E
• Rated lifetime L70: 50,000 hours
• 4000K or FieldCCeT: 3500K/4000K/5000K selectable CCT
• CRI: >80 or >90
E L E C T R I C A L
• Input voltage: 120-277V
• 0-10V dimming (FieldCCeT models)
• Power Factor: >0.9
• THD: <20%
T H E R M A L
• -4°F to 104°F (-20°C to 40°C) operating temperature
C O N S T R U C T I O N
• Durable steel body construction with white powder coat finish
• Max linkability:
LW2/20W/840/U: 20
LW4/40W/840/U: 10
LW4/27W/9FCCT3/UD: 15
LW4/36W/9FCCT3/UD: 11
LW4/45W/9FCCT3/UD: 9
