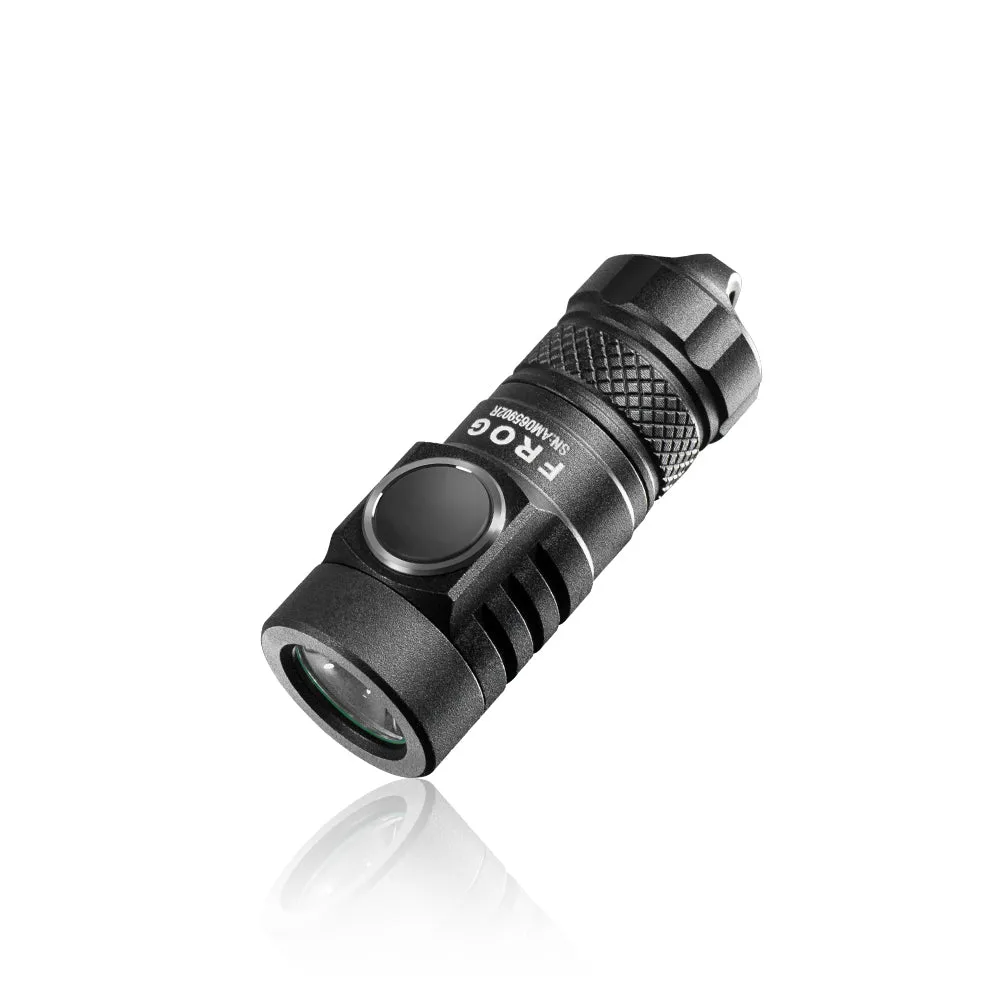

LUMINTOP FROG

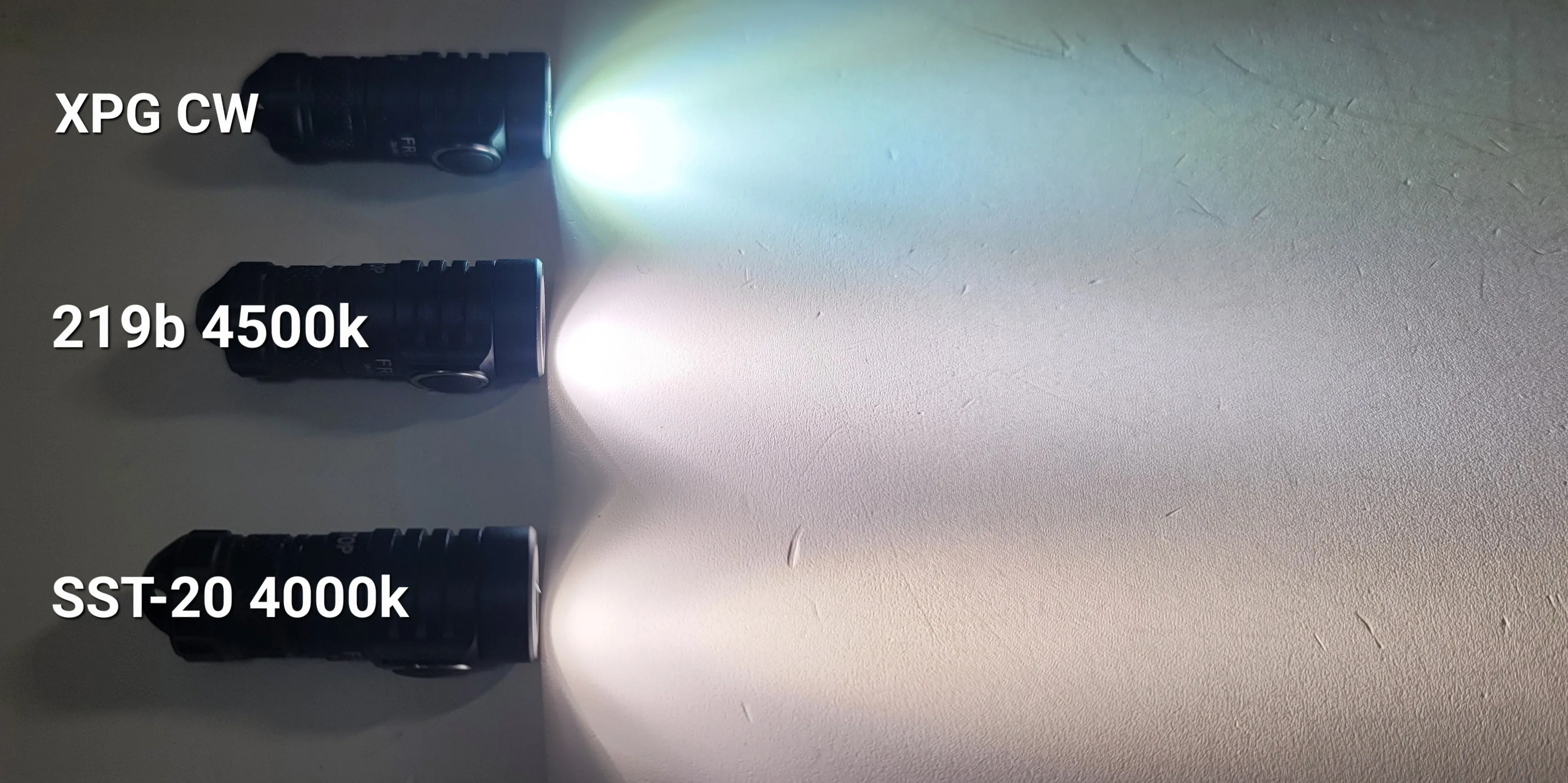

NOTE: The Lumintop FROG is standard with the SST-20 4000k emitter, I do offer many other emitter options ($10 additional depending on the emitter) for those that do not prefer the SST-20 4000k emitter or want a slightly higher lumen with a cooler tint (Cree XPG CW 6500k)

SST-40 4000k 570lm

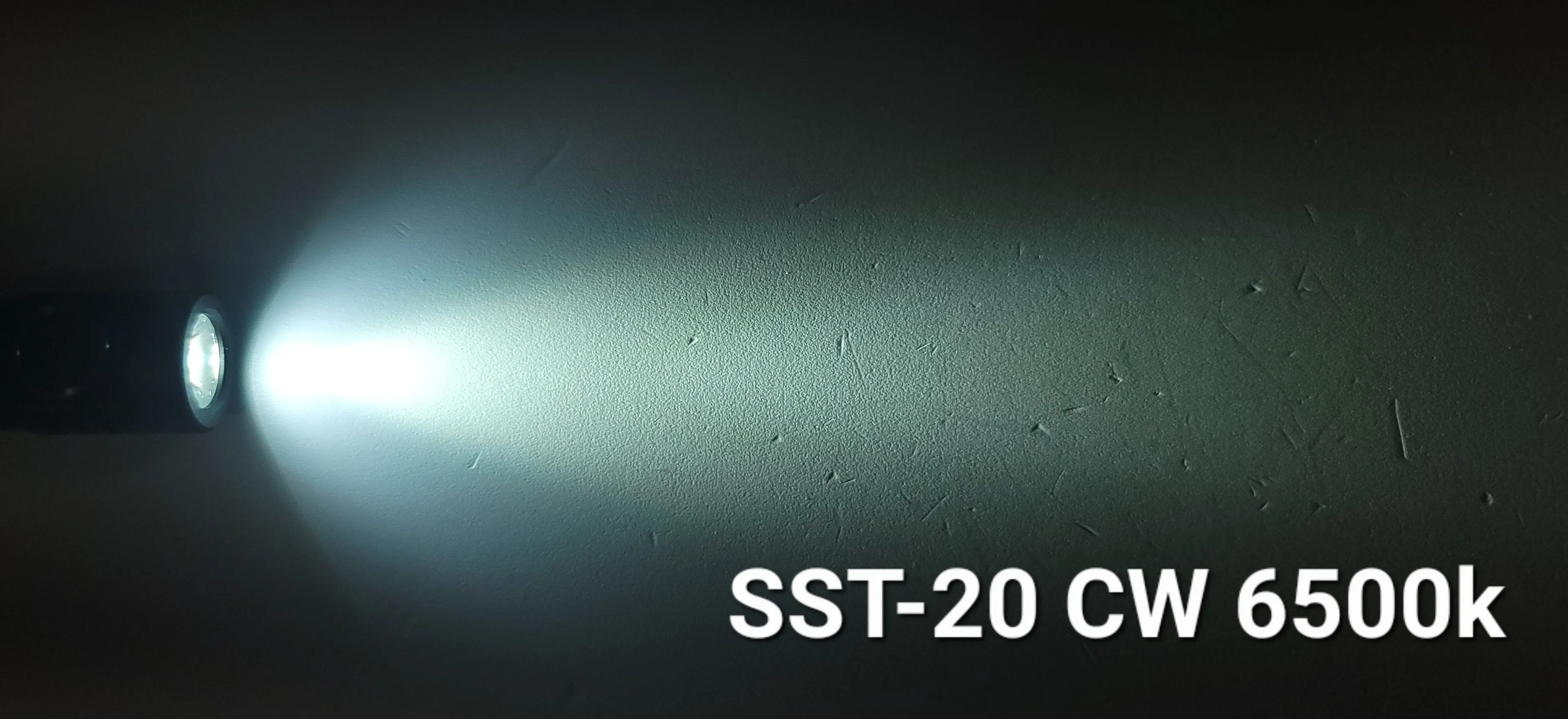

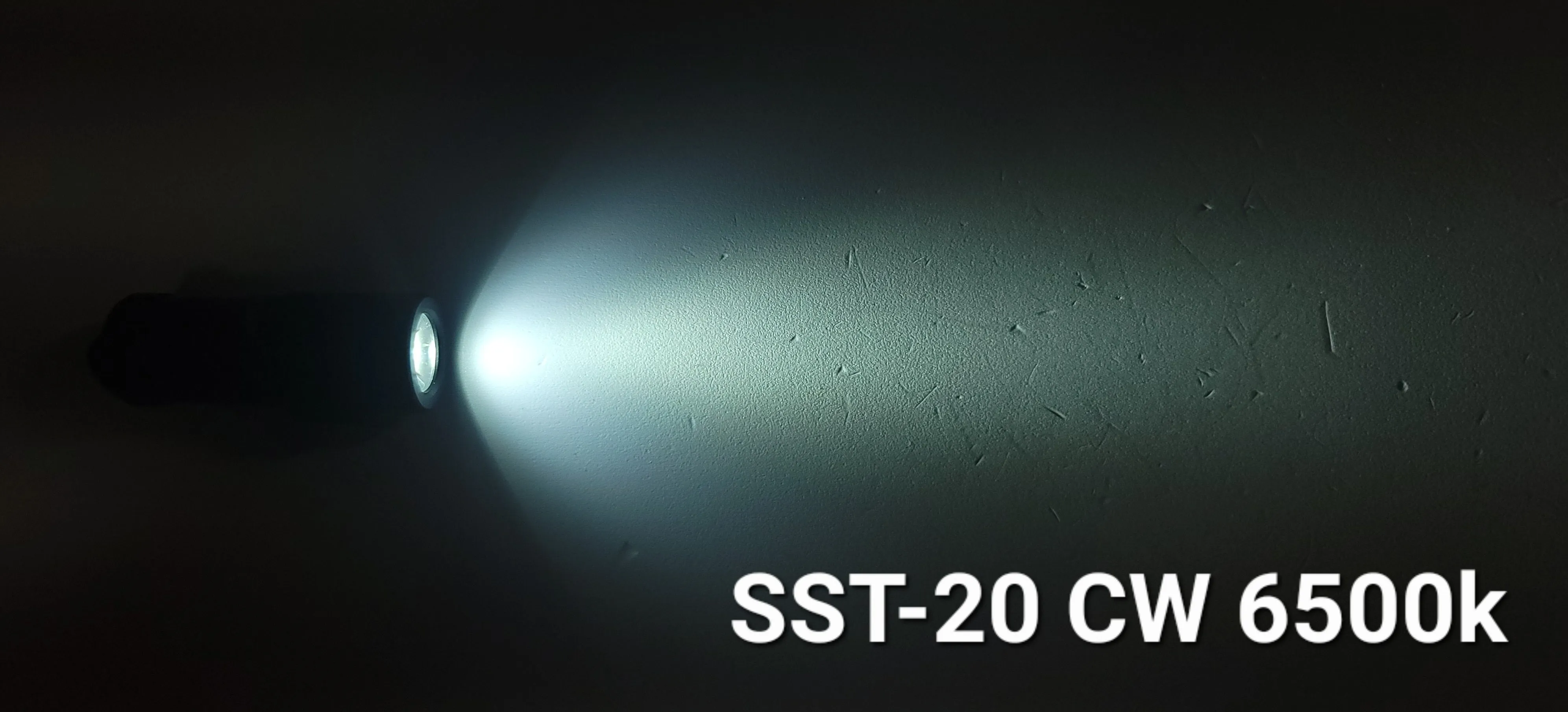

SST-20 CW

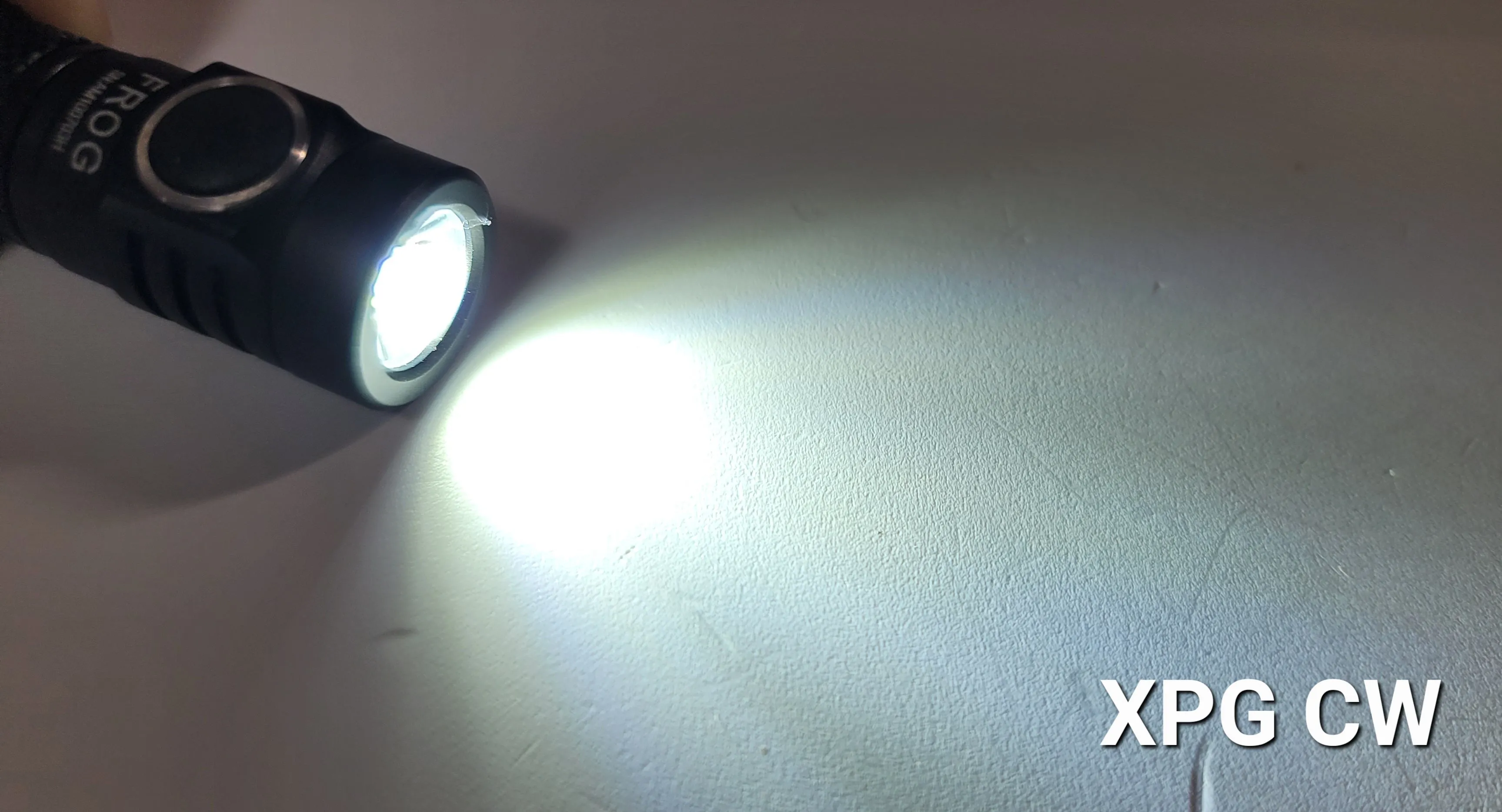

Cree XPG CW 6500k 650lm

Nichia 219b

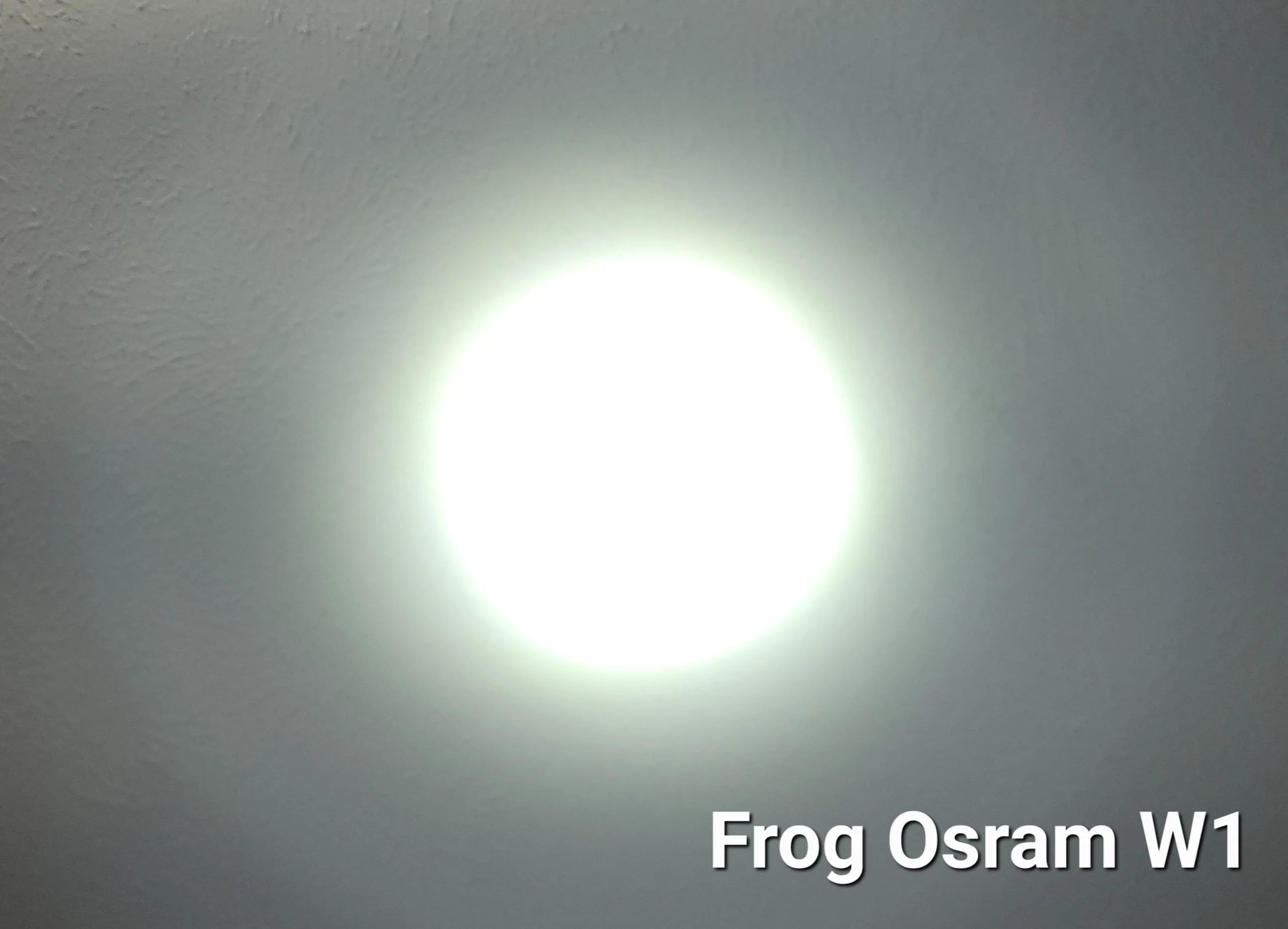

Osram W1

(CREE XPG EMITTER SWAP PLEASE DO NOT REMOVE THE BEZEL/OPTICS WILL OR CAN CAUSE DAMAGE TO THE LARGE CREE EMITTER)

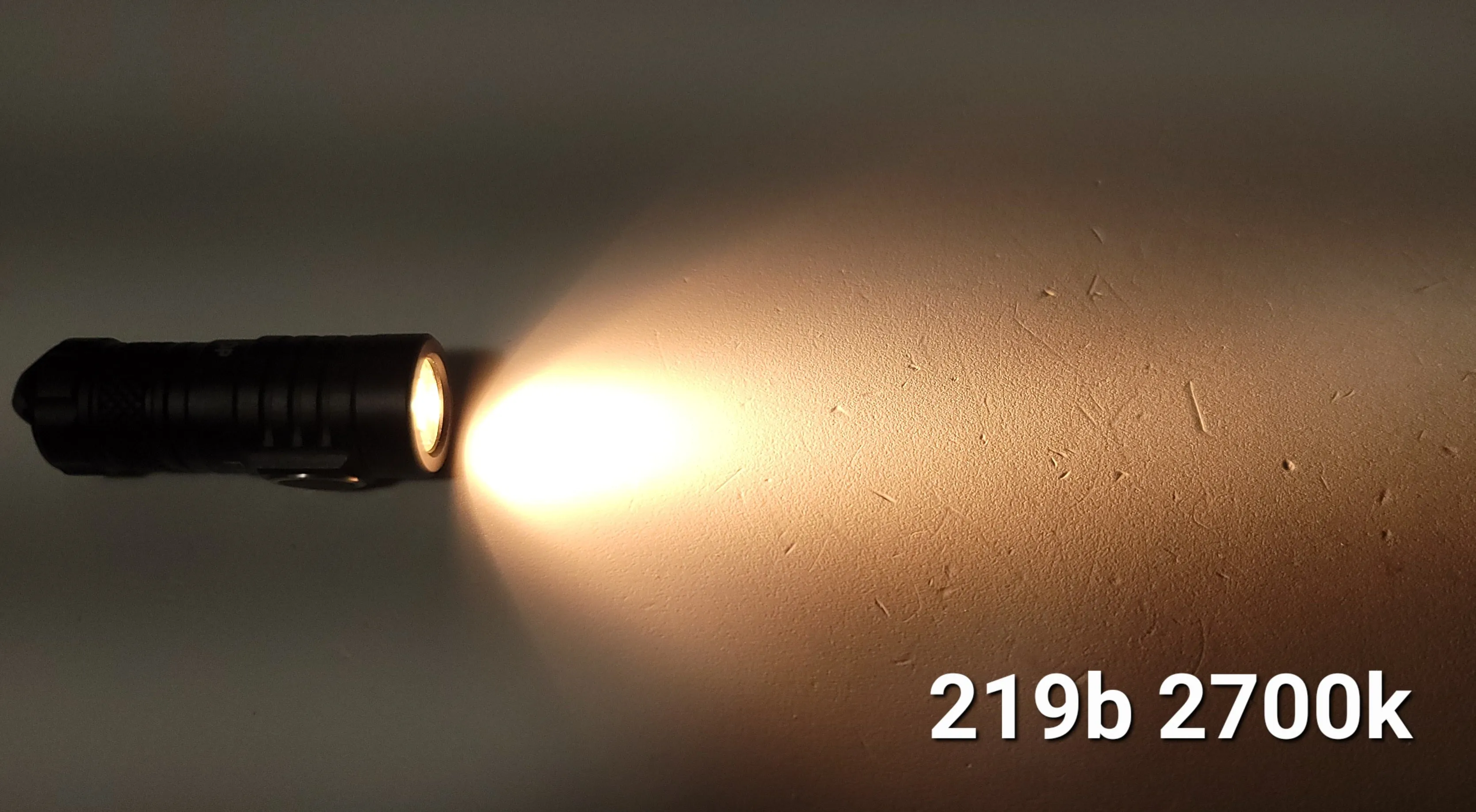

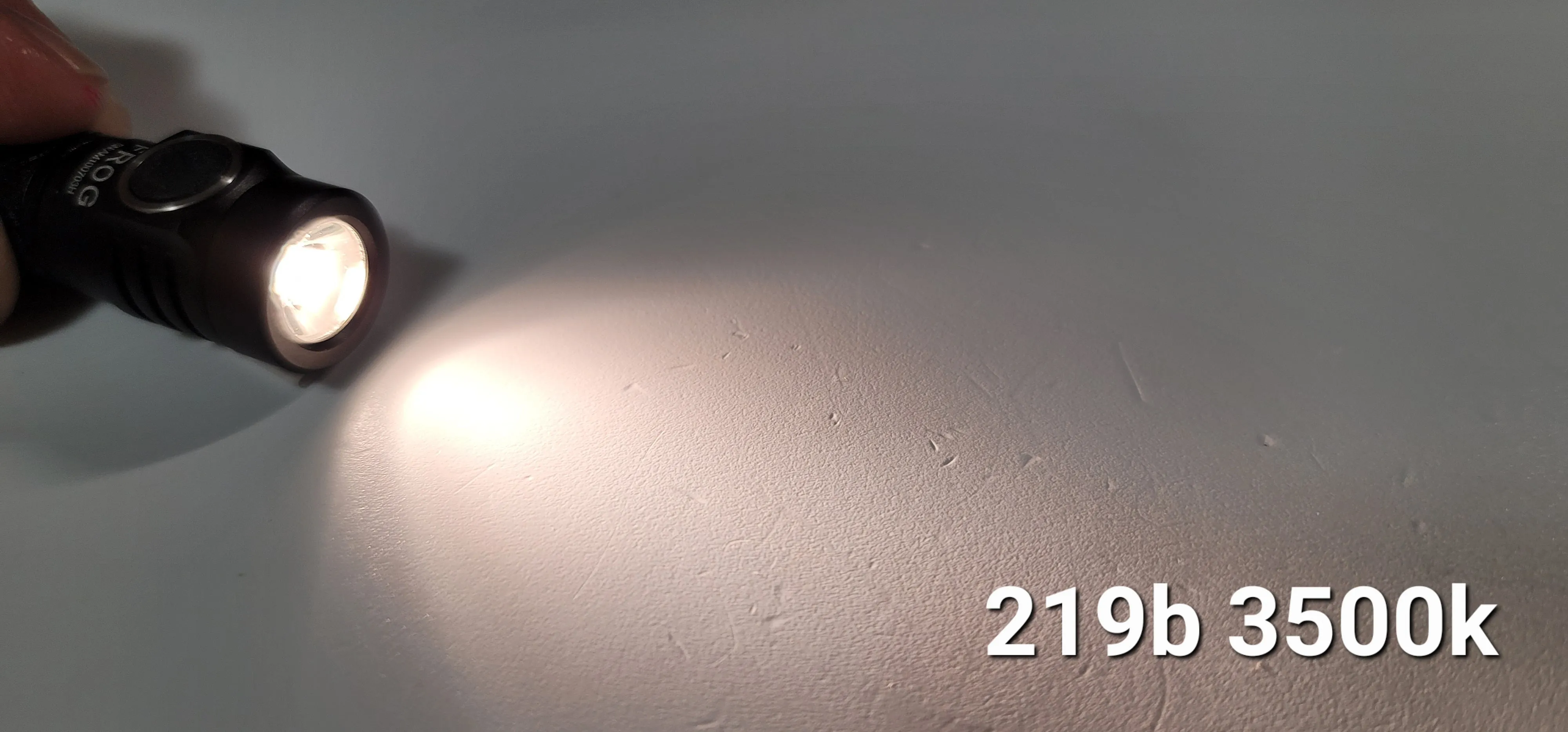

Also, Nichia 219b sw27k, sw35k and sw45k

Specifications:


Emitter: High performance LED
Flux: ~570 lm/ 750 lm (10180/ 10440)
Throw: ~135 m & ~4455cd/ 150 m & 5670cd
Runtime: 9 hours/ 36 hours (10180/10440, Moonlight)
Power: 12.6W
Firmware: Tom E’s open-source GPL NarsilM v1.3 adapted by Texas_Ace
User interface: [1] By default the GT Nano is set to use the very intuitive Narsil smooth RAMPING UI. Instant access to a 2.5A TURBO mode is also provided.
[2] A more conventional discrete level MODE-SET UI is available as an alternative.  Any one of 12 pre-defined mode-sets can be selected.
[3] MOMENTARY mode is useful for signaling purposes or rapidly/briefly lighting up targets.
Battery: One button-top 10180 Li-ion (included) or 10440 Li-ion (excluded) via the long tube
Driver: Texas Avenger FET driver

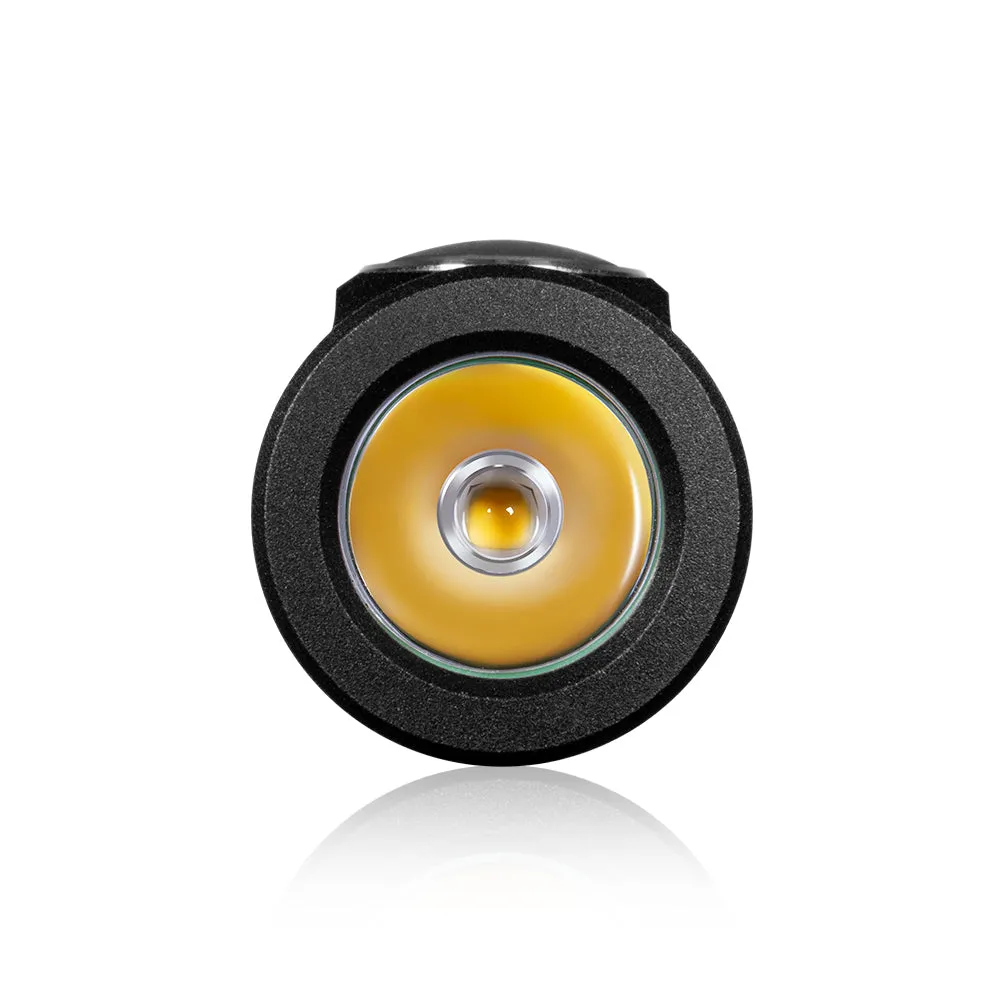

Optic: TIR optic lens
Body: Aluminum with Type III hard-coat anodizing
Button: Tactile with back-lit rubber boot
Ingress rating: Equivalent to IPX-8, underwater 2m
Weight: Approximately 11g without cells
Dimensions: 15.6 mm Ø head x 45mm length
Package includes: 1XFrog, 1X 10180 Li-ion battery, 1XKeychain, 1XManuall, 1XCharger, 1X Cable

Charging the battery:  Remove the insulation sheet before the first use. The indicator shows red when the battery is connected. The charging indicator shows red when charging and turns green when fully charged.
Notice: Extra 10180 battery will load into an extra mini flashlight. Don't let it be fooled you.

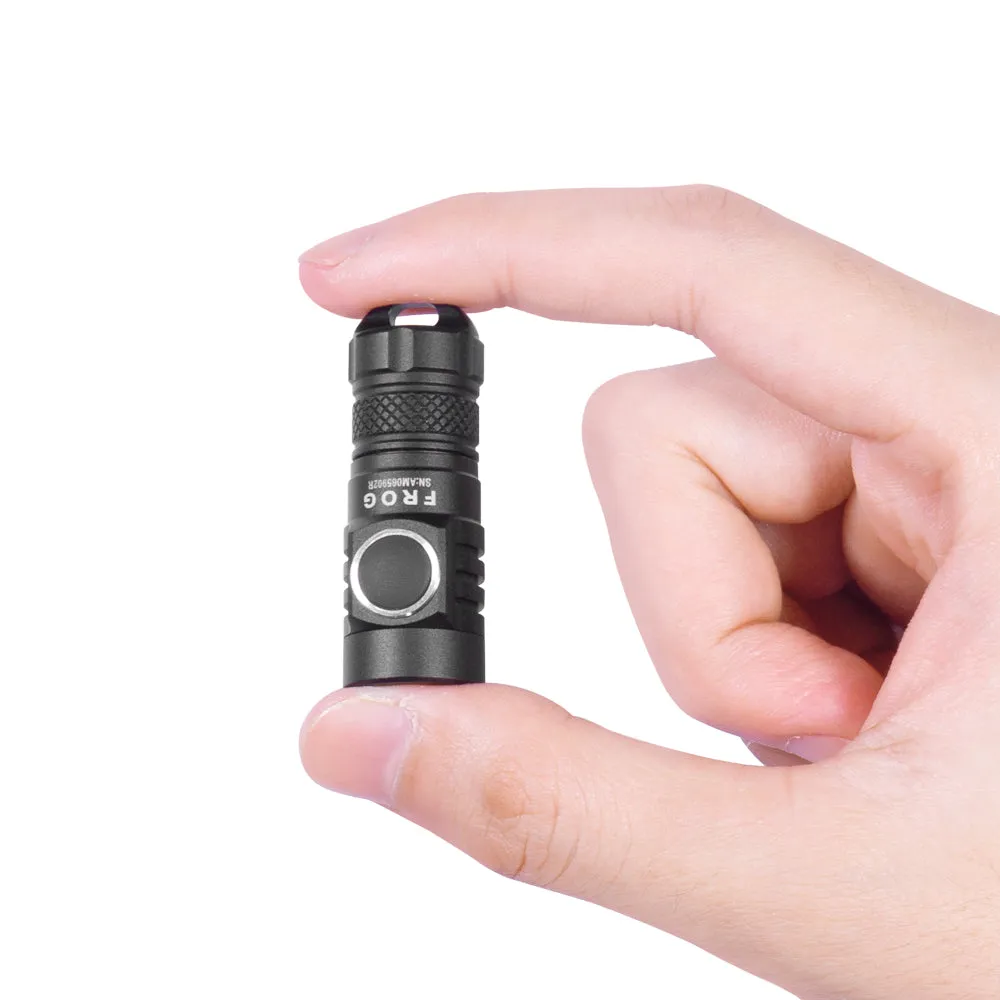

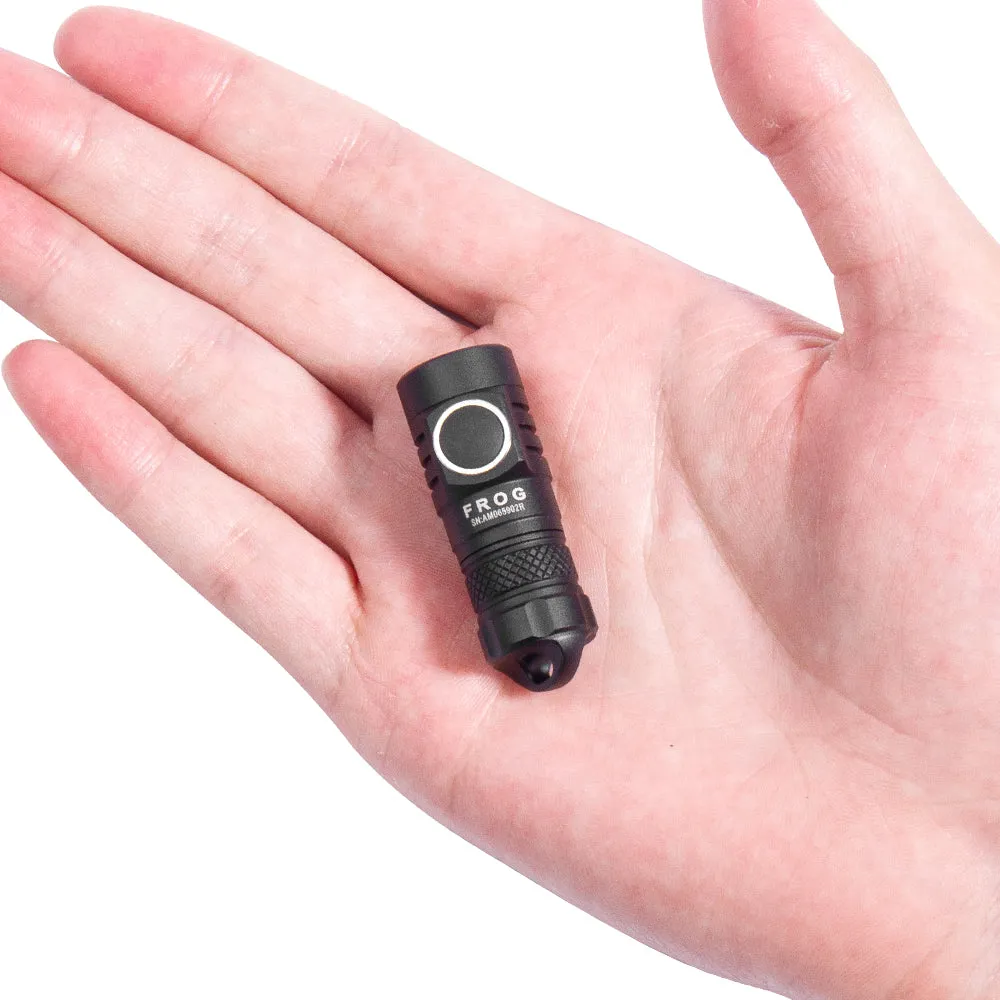

Lumintop Frog 570 Lumens 10180 10440 EDC Flashlight

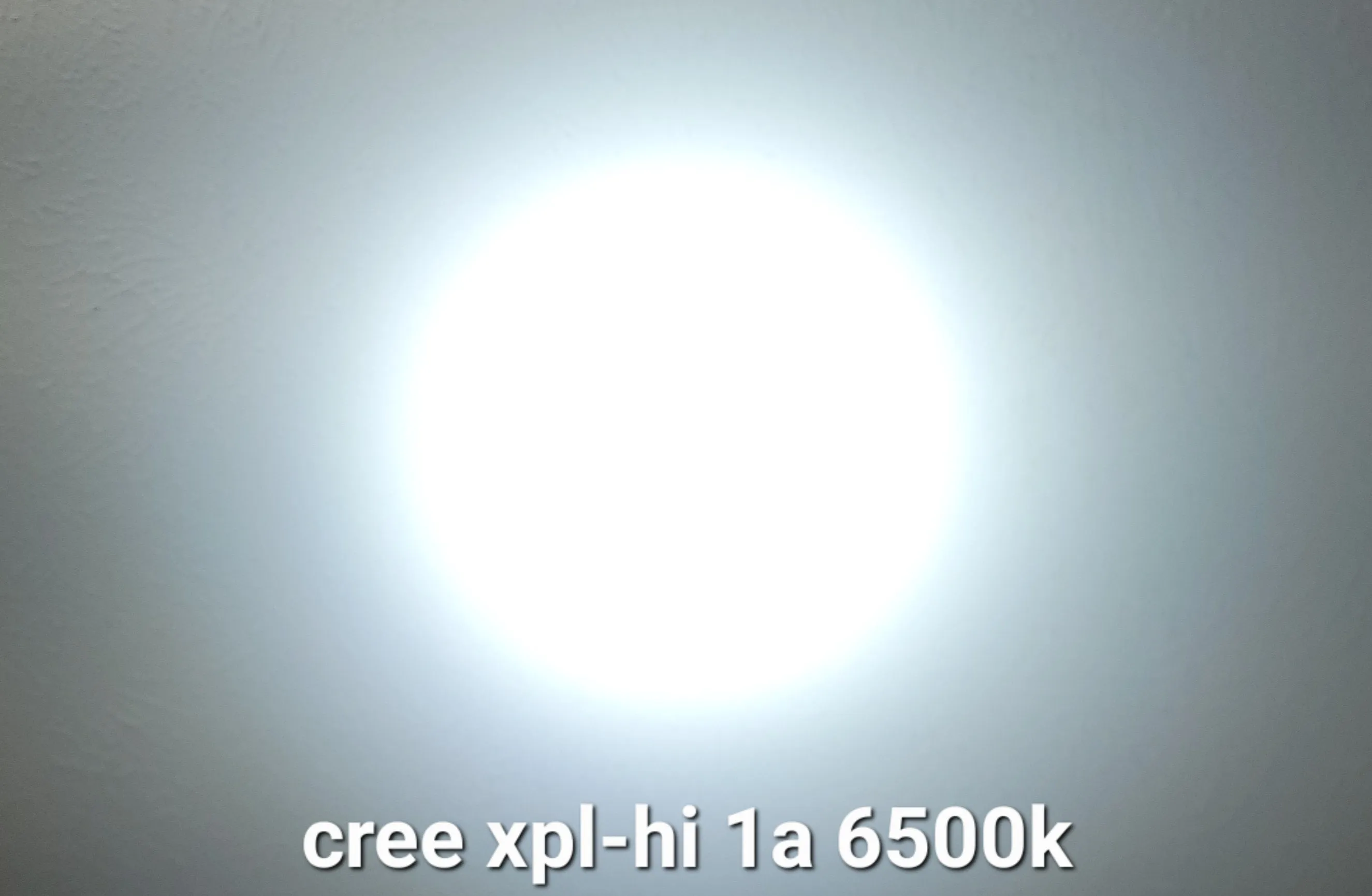

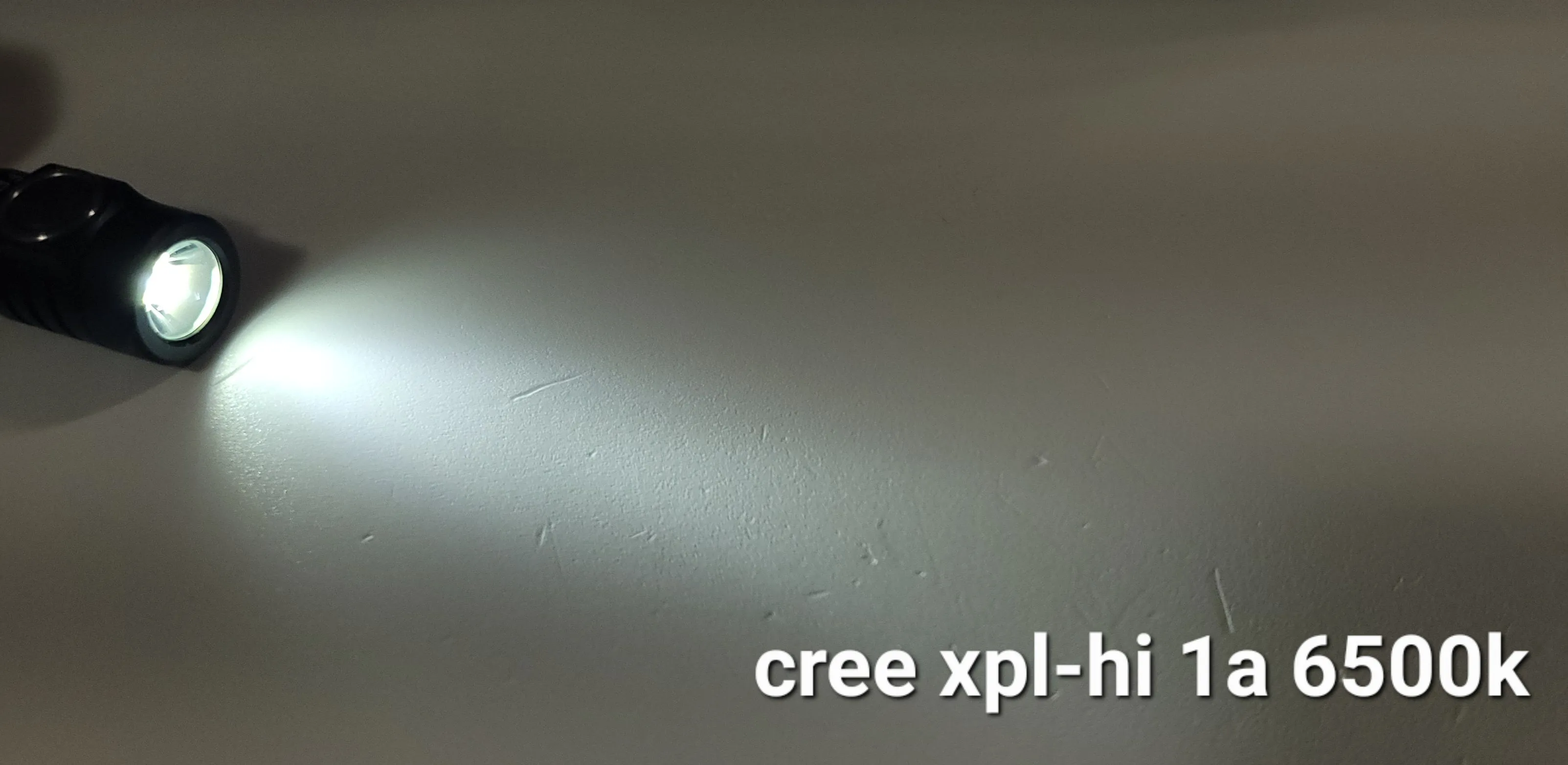

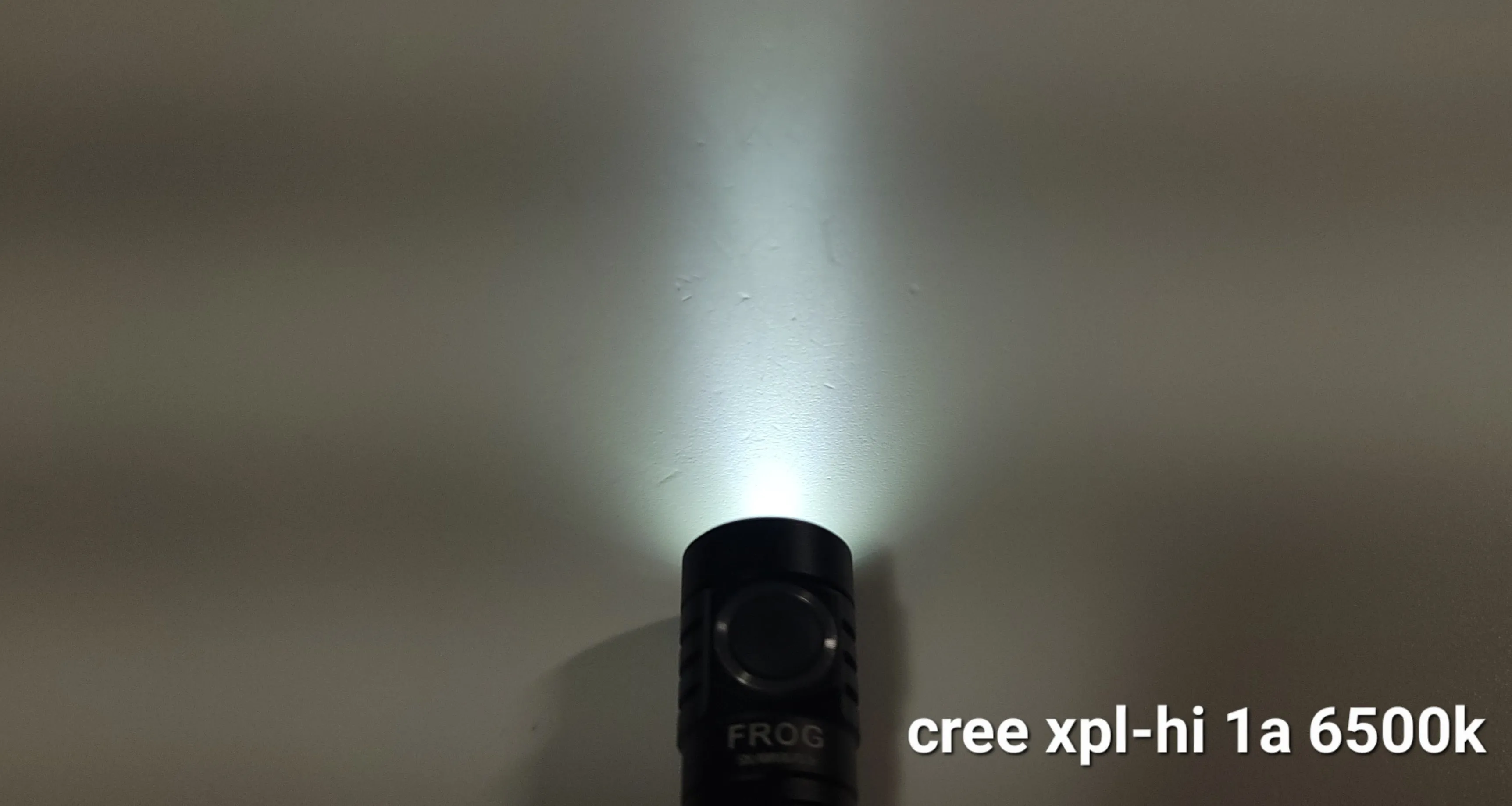

  • CREEXPLHI1A6500K
  • CREEXPLHI3A5000K
  • CREEXPGCW

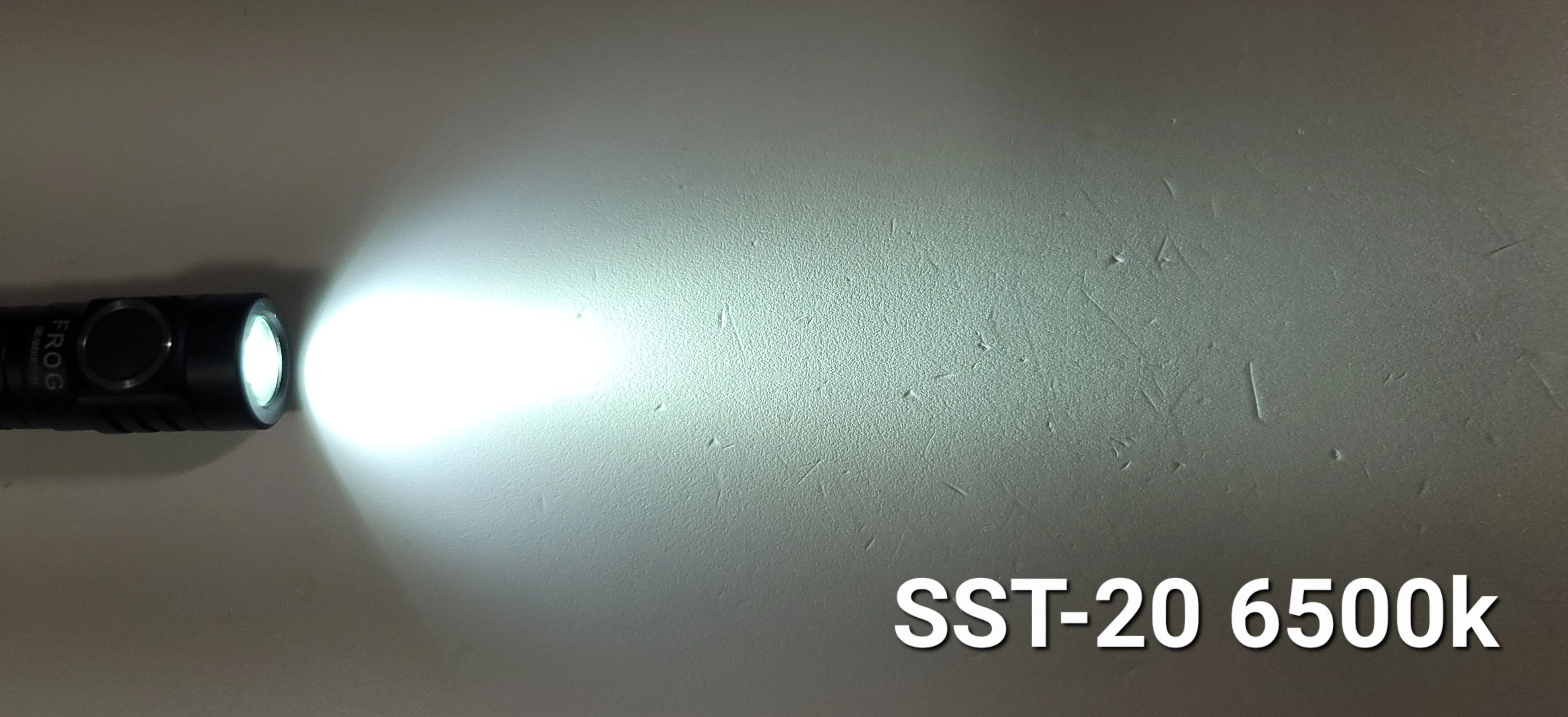

  • SST206500K

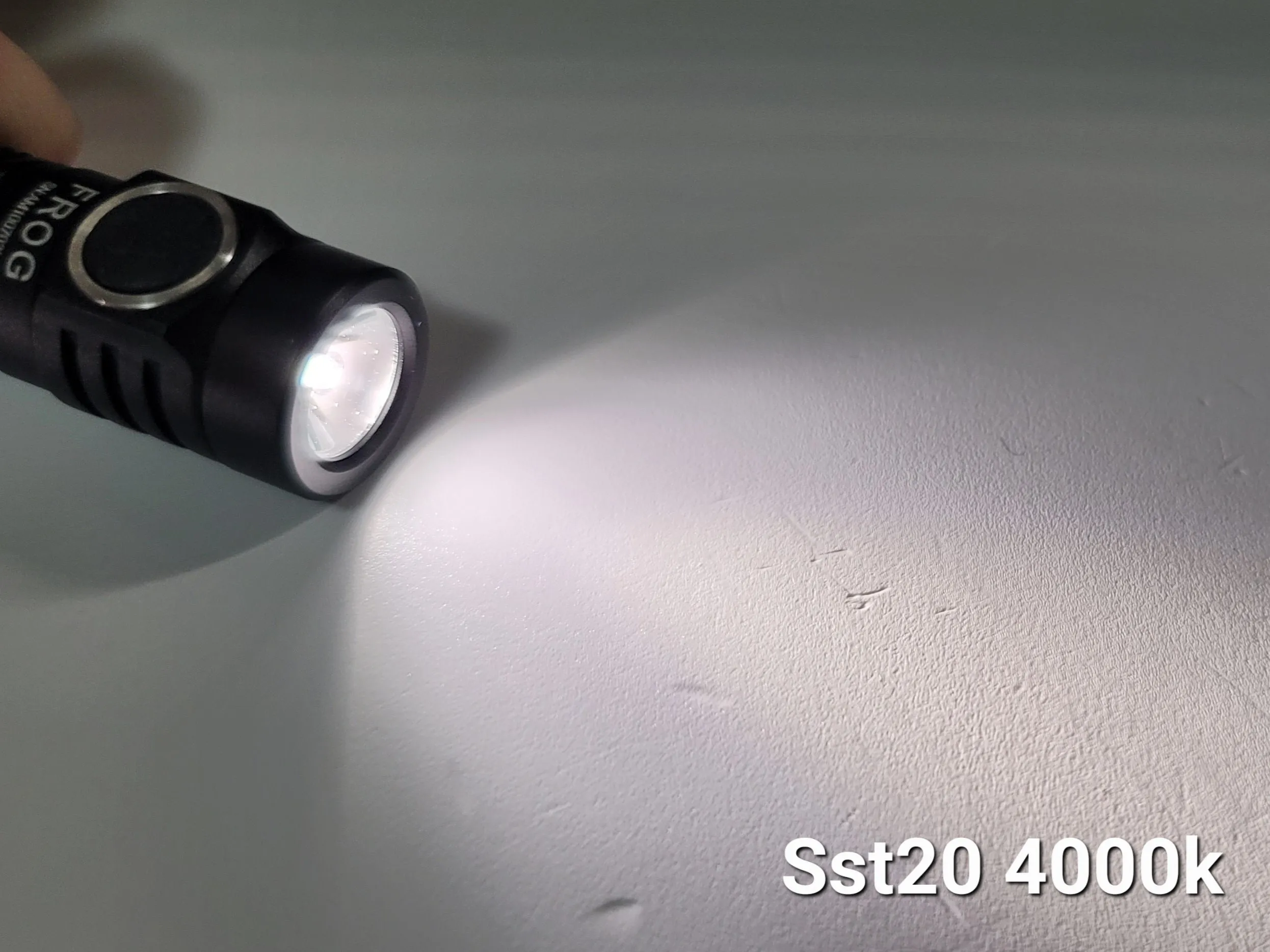

  • SST204000K
  • NICHIA219B2700K

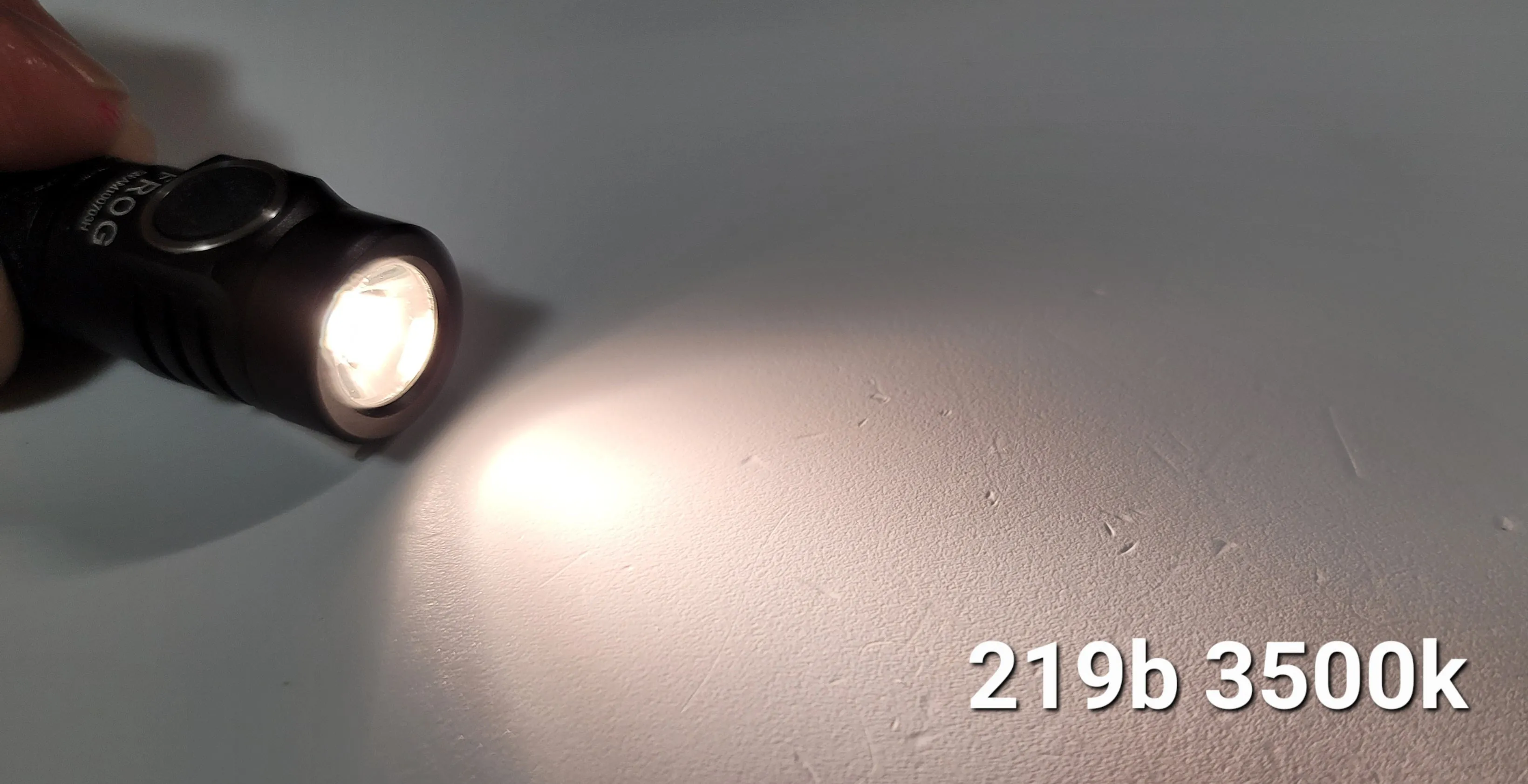

  • NICHIA219B3500K

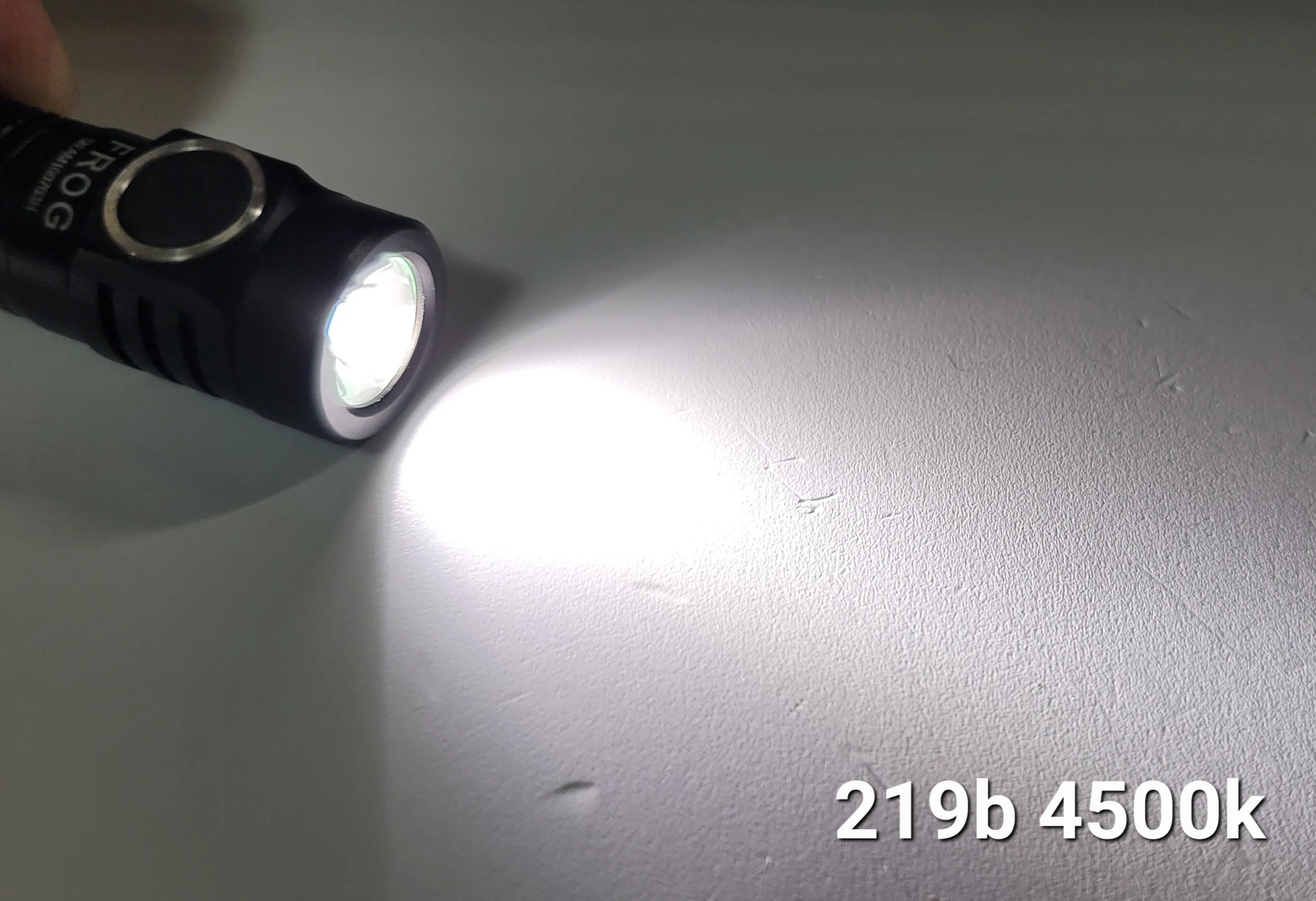

  • NICHIA219B4500K

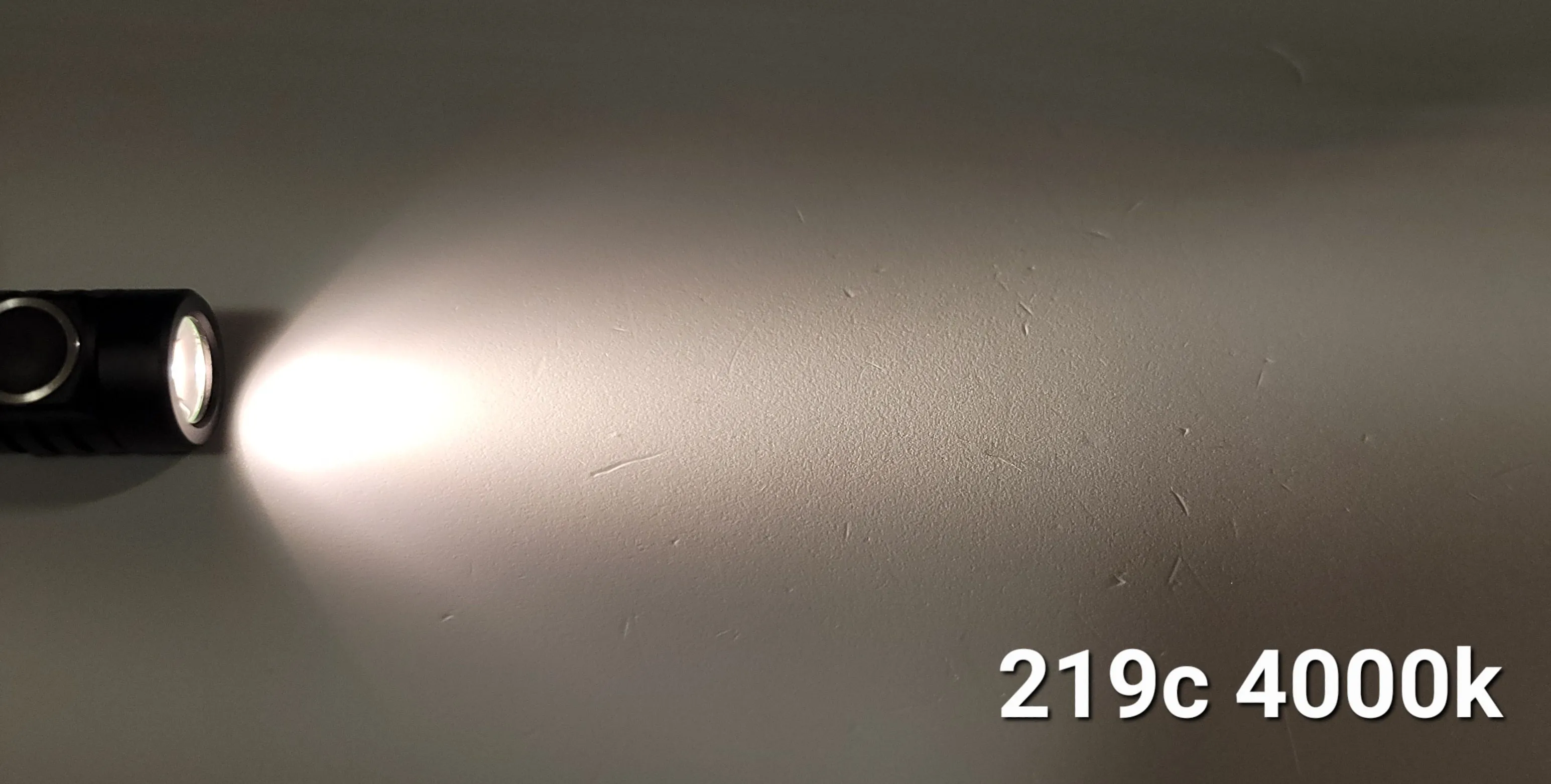

  • NICHIA219C4000K

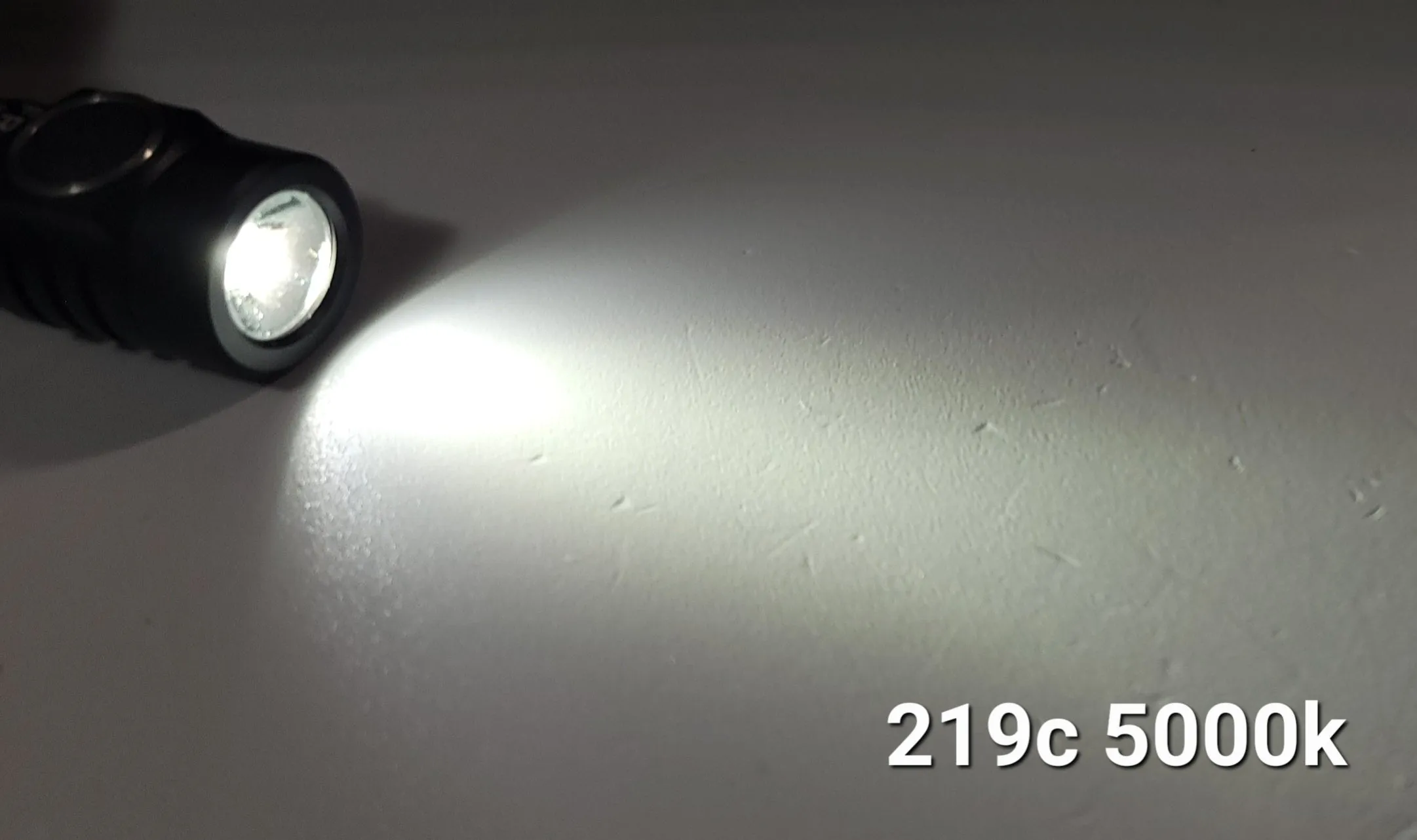

  • NICHIA219C5000K

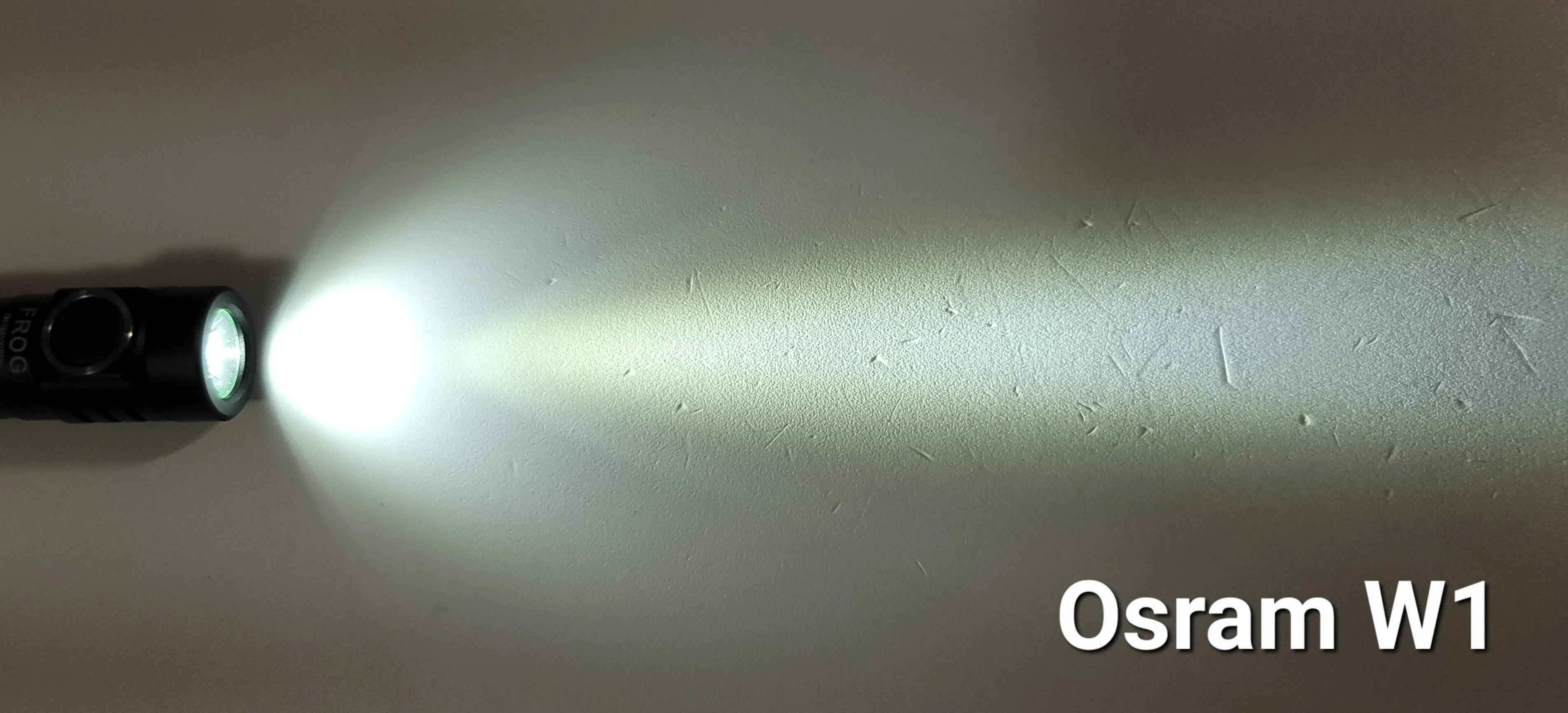

  • OSRAMW1

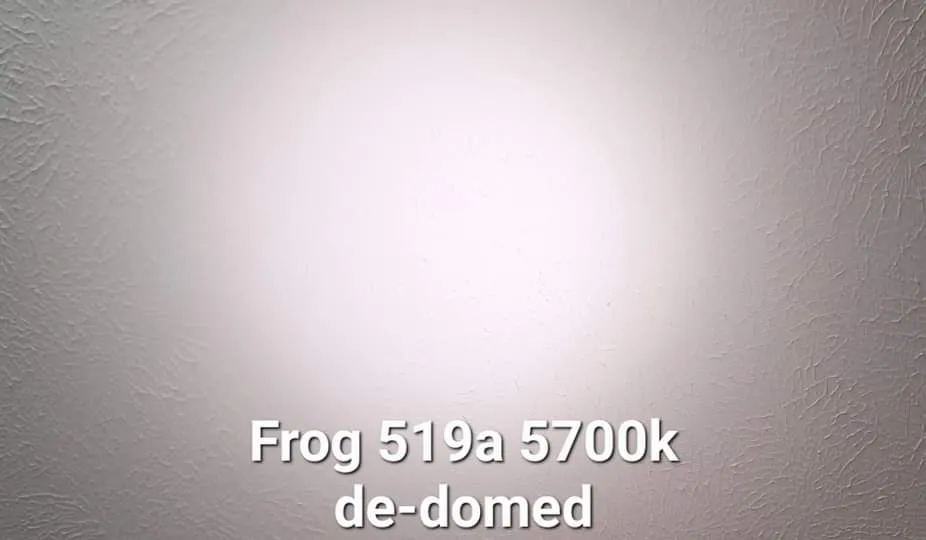

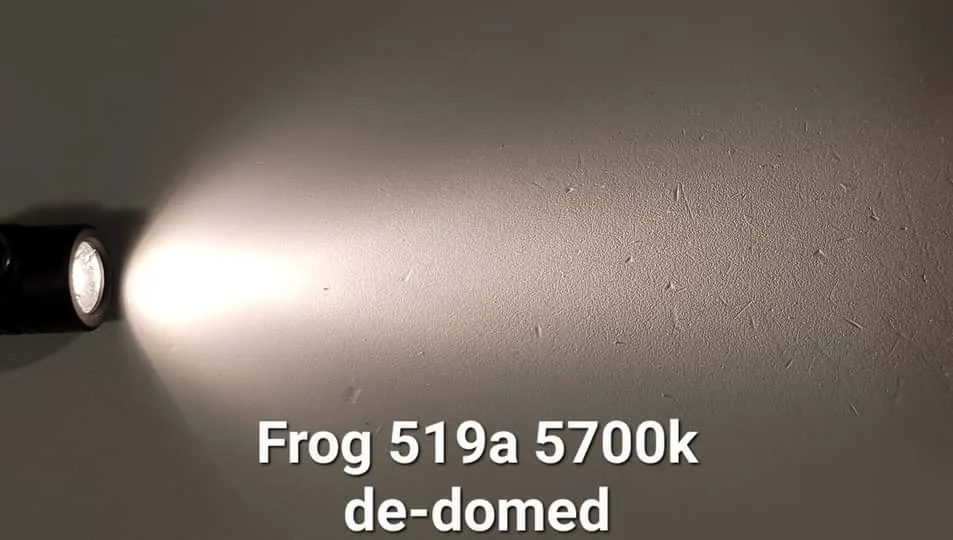

  • NICHIA519A5700KDEDOME

$ 39.99

$ 49.88
